Tcxo Crystals

The scope of tcxo crystal in electronic devices

What is meant by a tcxo crystal?

  • When exceptionally high stability across a range of temperature conditions is required, a temperature-compensated crystal oscillator, or tcxo, is utilized. Because it regulates frequency depending on temperature differences, it is frequently used in communication equipment. The radio frequency (RF) circuit functions as an oscillator circuit when the oscillator’s frequency variation has to be minimal throughout its whole working temperature range. It is also known as a crystal oscillator or a quartz oscillator.
  • A crystal oscillator known as a tcxo (Temperature Compensated Crystal Oscillator) has a system that automatically modifies the oscillation frequency in response to temperature variations. A tcxo crystal enhanced precision over a typical crystal oscillator is its principle benefit.、

Why you choosing a tcxo crystal?

  • Temperature stability:

The tcxo crystal is used in stable temperature oscillators, and these crystals have a very high accuracy over a wide range of temperatures. The tcxo crystals are used as stable temperature oscillators in many applications such as wireless communication systems, GPS receivers, radio frequency identification devices, etc. To keep the accuracy of these devices, they must be held at a constant temperature

  • Frequency stability:

The crystals are used as frequency stabilizers in radio transmitters. They help keep the transmitter stable over time. You must know its characteristics to achieve maximum performance from your tcxo crystal. A crystal oscillator is used to generate a precise reference frequency. It helps stabilize the output of a radio or transceiver. A crystal oscillation frequency stability test procedure consists of setup, measurement and analysis.

  • Reasonable cost:

The tcxo Crystal is a crystal used to store energy. They are also known as Energy Crystals. They have created an affordable line of crystals to help our customers build their circuits. In place of crystal oscillators, this type of oscillator circuit is used. Despite being present since the early 1940s, they remain popular because of their precision, dependability, and stability. Performance is superior to that of a standard crystal oscillator at higher temperatures. In radio frequency transmitters, oscillator circuits like this are frequently seen. By managing crystal oscillators, it helps maintain frequency stability.

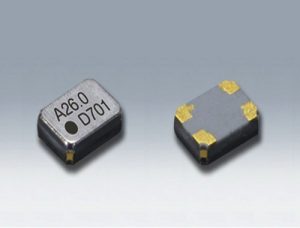

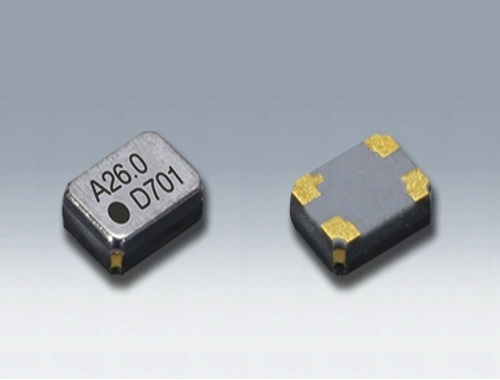

tcxo crystals

How is a tcxo crystal to use?

  • Resonance is the basis for how it operates. A temperature compensation network is employed to push the crystal back to its nominal value by monitoring the temperature of the environment. The complete oscillator circuit and output stages of a voltage control crystal oscillator are exact as one would expect.
  • The crystal alters the oscillator’s frequency to consider variations resulting from temperature variations. It has three terminals: an output terminal, a negative supply terminal, and a positive supply terminal (+V, -V) (OUT). Analog and digital are the two categories under which it falls. The frequency of the crystal oscillator circuit is controlled by a voltage control oscillator in an analogue oscillator.

The five separate parts that make up the full temperature-controlled oscillator are as follows:

  • The compensation oscillator
  • pulling circuit network
  • Circuitry for the real crystal oscillator
  • Voltage regulator
  • Buffer amplifier

The Function of tcxo crystal:

  • Oscillator Core:

A tcxo naturally contains an ordinary oscillator circuit tailored to provide the required frequency in addition to this temperature compensation circuitry.

  • Voltage Regulator:

This element functions as a protection mechanism. To prevent voltage variations within the tcxo, for example, due to the power supply’s noise, it is necessary to regulate the voltage provided to the tcxo from the outside.

  • Output Buffer:

Yet another defence system. It shields the crystal oscillator from any changes to the external load. As a result, the precision of resonant frequency would not be affected by changes in output-load capacitance.

What are the merits of using tcxo crystal?

  • It is a crucial component of technology utilized by radio, television, and mobile phone networks.
  • Due to their ability to provide a consistent output voltage regardless of the intensity of the input signal, they are frequently utilized in audio amplifiers.
  • The device determines the power input. A 3V supply is frequently used. It just draws a little over two mA of electricity.
  • It produces outputs that may be used in various applications, including clipped and conventional sine waves.
  • Its temperature performance is around 10 to 40 times better than that of conventional crystal oscillators. Compared to other crystals, it has a low level of phase noise.
  • They are used in various devices, such as two-way radios, mobile phones, and GPS receivers, where a constant frequency is necessary. It’s a small chip that increases your electrical device’s ability to keep accurate time over a basic crystal oscillator.

The effect of temperature on the accuracy of tcxo crystal:

The Influence of Temperature on tcxo Accuracy. The accuracy of a tcxo can be impacted by temperature variations. In general, the oscillator tends to rapidly up as the temperature increases and slow down as the temperature decreases. Over the whole operating temperature range of -40°C to 85°C, tcxo limits frequency variations, resulting in frequency stability up to 0.5ppm.

Conclusion:

tcxo crystal is a crucial part of several electrical gadgets. It regulates a device’s frequency and maintains stability over time. A crystal is less susceptible to external influences and is more precise and stable than a conventional crystal. Through ongoing innovation processes, discoveries in design and knowledge, and skill building in the service delivery sectors, we will continue to strive to generate value and provide consumers with more value. The product you select is a wise investment. Not only once but regularly, you can rely on us. We value your comments about ChipSun so that we can enhance the quality of our offers. Giving our customers a satisfying experience is our main priority. As a result, you can be given a more extensive warranty, giving you greater assurance. Our first aim is to ensure your entire contentment. Order and buy right away.
