A Comprehensive Guide to SMD Crystal Oscillator

What is meant by an SMD crystal oscillator?

  • An electronic oscillator circuit known as a Surface Mount Device (SMD) crystal oscillator produces a steady frequency signal using a quartz crystal resonator. Putting the oscillator circuit onto a printed circuit board is simple since the circuit is incorporated into a surface-mount package (PCB).
  • A tiny piece of quartz called a quartz crystal resonator vibrates at a very particular frequency when an electrical current is sent through it. Temperature variations impact the crystal’s frequency stability; hence the oscillator circuit may include a temperature compensation circuit to keep the output frequency consistent across a wide temperature range.
  • SMD crystal oscillatoris often used in electronic equipment, including computers, communication systems, and consumer electronics that need accurate timing or frequency control. They are chosen over other varieties of oscillators because of their great precision, stability, and dependability, as well as their portability and simplicity of installation.

The Characteristics of SMD Crystal Oscillators:

The SMD crystal oscillators’ key features include the following:

  • High-frequency stability, usually within a few parts per million, is a property of SMD crystal oscillator(ppm). This demonstrates that the oscillator’s output frequency is relatively constant over time and is unaffected by environmental variables like temperature, voltage, or load variations.
  • SMD crystals contain extremely little phase noise, which results in little jitter or phase inaccuracy in the output signal. This is crucial for applications that call for exact timing or synchronization.
  • As temperature variations impact SMD oscillators’ frequencystability, they may include a temperature compensation circuit to keep their output frequency steady across a wide temperature range.
  • The oscillators have a very long operational life and are extremely dependable. Because of their excellent stability and precision, they resist wear and tear and provide constant performance over time.
  • The crystal oscillators are perfect for small-footprint devices like mobile phones, laptops, and wearables since they are incredibly tiny and have a small footprint.

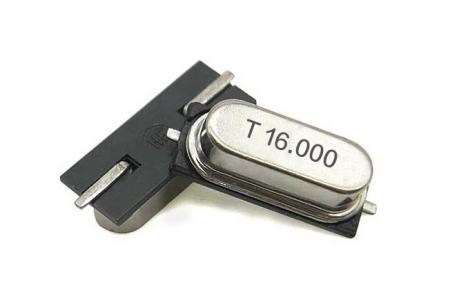

SMD crystal oscillator

The Design and application of High-Frequency Surface Mount Oscillators:

High-frequency surface mount oscillators are electronic devices that produce an electrical signal with a high-frequency range. Design and uses. They are often employed in various applications that call for accurate and reliable oscillation signals, including those in the telecommunications, aerospace, defence, and medical sectors.

Design of High-Frequency Surface Mount Oscillators:

Several factors must be considered when designing high-frequency surface mount oscillators to achieve maximum performance. They include the crystal type utilized, the oscillator’s stability, and the oscillator’s resonance frequency selection.

  • Resonant Frequency:

The oscillator’s booming frequency controls the frequency at which it will oscillate. The crystal’s physical characteristics and crystallographic orientation are often what determines it. The thickness or cut angle of the crystal can be changed to alter the resonance frequency.

  • Crystal Type:

The oscillator’s performance is also influenced by the kind of crystal that is used in it. The two most popular crystals employed are the quartz crystal and the ceramic resonator. Quartz crystals have a high Q-factor and are very stable, but ceramic resonators are less expensive and have a wider operating temperature range.

  • Stability:

When designing oscillators, stability is a crucial factor. It speaks to the oscillator’s capacity to sustain a consistent frequency despite variations in temperature and time. A (TCXO) will increase the oscillator’s stability (OCXO).

The Use of SMD crystal Oscillators:

  • Telecommunications:

High-frequency surface mount oscillators are often utilized in telecommunications systems, including radios, telephones, and satellite communication systems. These oscillators deliver accurate, steady, exact timing signals, which are necessary for precise data transfer.

  • Aerospace and Defense:

High-frequency surface mount oscillators are employed in systems for missile guidance, radar, and navigation in the aerospace and military industries. For an exact system to operate, these oscillators offer precise timing signals.

  • Medical:

High-frequency surface mount oscillators, including tools and equipment for treating patients, are also employed in medical settings. For the exact collection and monitoring of data, these oscillators offer precise signals that are stable.

  • Industrial:

High-frequency surface mount oscillators are employed in various industrial applications, including process control and automated systems. These oscillators deliver exact timing signals to ensure that the system operates correctly.

How do SMD Crystal Oscillators work?

  • A Surface-Mounted Device (SMD) oscillator is an electronic component that generates precise frequency signals. It consists of a crystal resonator, a feedback circuit, and an amplifier.
  • The heart of the oscillator is the crystal resonator, a piece of quartz crystal cut in a specific shape and size. When an electric field is applied to the crystal, it vibrates at a specific frequency. The shape and size of the crystal determine the frequency of vibration.
  • Because of their smaller size and lower profile, SMD crystal oscillators are more resistant to damage from shock and vibration than through-hole equivalents.
  • A feedback circuit is attached to the crystal, amplifying the signal and feeding it back to the crystal. This establishes an ongoing cycle in which the crystal’s vibration is boosted and sent back to the crystal, maintaining its frequency.
  • When the signal has been strengthened, it is routed to an amplifier, which increases its power and sends it to the external circuit.

The Advantages of SMD Surface-mount device (SMD) crystal oscillators:

The Advantages of SMD Surface-mount device (SMD) crystal oscillators provide several advantages over their through-hole counterparts. Some benefits are as follows:

  • Smaller Size:

SMD crystal oscillator is much smaller than their through-hole counterparts, making them perfect for applications with limited space.

  • Reduced Profile:

SMD crystal is appropriate for height issues since they have a lower profile than its through-hole counterparts.

SMD crystal oscillators are more accurate and stable because they are made with contemporary manufacturing methods that reduce parasitic capacitance and inductance.

  • Reduced Cost:

The production of SMD crystal oscillators may be automated, which can assist in lowering prices and make them more accessible for various applications.

  • Simpler Assembly:

SMD crystal oscillators may be inexpensively and quickly placed onto printed circuit boards (PCBs) utilizing automated pick-and-place machinery.
