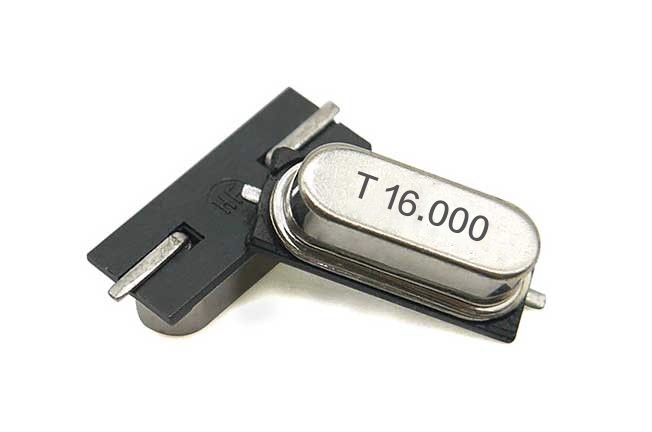

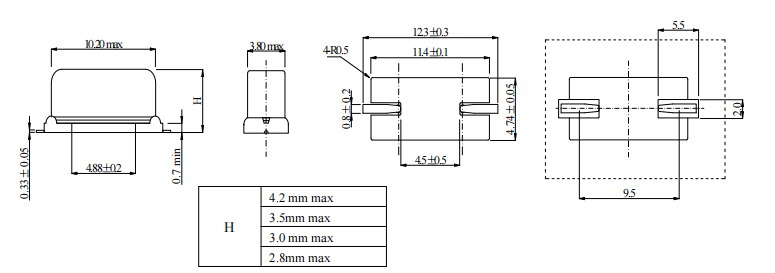

Home > Product > HC-49SMDHC-49SMDFrequency: 3.5MHz-100MHz Size: 11.4 x 4.8 mm Temperature: -20℃~+70℃ -40℃~+85℃ Stability: ±10ppm ±20ppm ±30ppm Sample Download Parameter Table PARAMETERS SPECIFICATION Frequency Range 3.5 ~ 100MHz Operation Mode （3.5 ~ 40MHz） Fundamental （27 ~ 100MHz）3rd /5rd Overtone Loading Capacitance 20pF Std. 8 to 33pF , Series available Drive Level 10μW（300μW Max） Frequency Tolerance ±10ppm ~ ±30ppm（at 25℃） Equivalent Resistance See Below Frequency Stability ±2.5ppm ~ ±50ppm Operating Temp. Range: 0 ~ +50℃ to -40 ~ +85℃ Storage Temp. Range: -55 ~ +125℃ PART NUMBER GUIDE e.g. FTX16.000M20SM-30/30B (*SM=HC-49/SMD TYPE) Logo Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Frequency Stability Operating Temp. Range FT X 16.000MHz 20pF SM +/-30ppm +/-30ppm B Definition Description Operating Temperature Range A：-10~+60℃ B：-20~+70℃ C：-30~+80℃ D：-40~+85℃ E：Customer specified External dimensions Application form Note:items marked with * are required *Name *Email *Frequency *Stability *Voltage/load Capacitance Remark
