Enhancing the structure of the quartz crystal unit for high-temperature and high-frequency applications

What is a Quartz crystal unit?

  • An electronic component called a quartz crystal unit, commonly called a quartz crystal oscillator, is used to produce extremely precise and steady electrical signals at a certain frequency. Because it is a particular kind of piezoelectric resonator, it can change mechanical energy into electrical energy and the other way around.
  • The crystal unit is made up of a thin quartz crystal piece that has been cut and formed in a certain way to cause it to vibrate at a particular frequency when an electrical current is applied to it. Because of how precisely and steadily this vibration occurs, crystal units, such as clocks, watches, computers, and communication devices, are perfect for use in electrical circuits that need exact time.
  • Because of its precision, stability, and affordability, quartz crystal components are often utilized in modern electronic systems. They come in various frequencies and sizes, from compact surface-mount components to substantial through-hole packages.

How does a quartz crystal unit work?

A crystal unit’s main job is to deliver precise and reliable timing signals to electronic circuits. Electronic gadgets specifically employ quartz crystal units as a standard for timing and coordinating the operation of different parts. A few of the primary purposes of quartz crystal devices are as follows:

  • Oscillator:

In oscillator circuits, crystal units are utilized as the resonant element to provide a steady, accurate signal at a certain frequency.

  • Watches and clocks:

The crystal units are utilized to ensure precise timekeeping in the timing circuits of clocks and watches.

  • Communication devices:

A quartz crystal unit is utilized in communication devices, including radios, TVs, and mobile phones, to enable precise frequency control for the transmitter and receiver.

  • Microprocessors:

Quartz crystal units provide accurate clock signals that synchronize the functioning of the different parts in microprocessors and other digital circuits.

  • Test and measurement apparatus:

Crystal units are employed to offer exact time and frequency standards for the calibrating test and measurement apparatus. Overall, quartz crystal units are a necessary part of many electronic devices that require accurate timing signals because of their precision and reliability.

How valuable are quartz crystal units?

Due to its precision, stability, and dependability, the quartz crystal unit is immensely helpful in various applications. The following are a few applications for crystal units:

  • Timing accuracy:

Which are employed as the timing reference in many electronic devices, producing timing signals that are extremely precise and stable. Applications requiring accurate time, such as clocks, watches, communication systems, and digital circuits, depend on this accuracy.

  • Minimal power consumption:

The crystal units are perfect for battery-operated products like watches and portable gadgets since they use relatively little electricity.

  • High reliability:

It is appropriate for use in sensitive applications where failure is not an option since they are extremely dependable and have a long operational life.

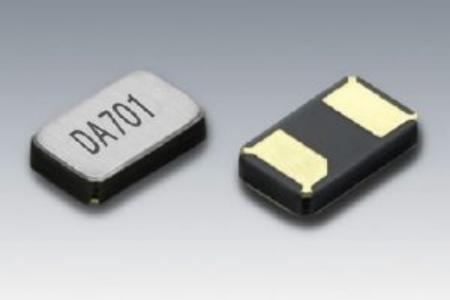

Quartz crystal unit

  • Tiny size:

The crystal units may be found in incredibly tiny sizes, which makes them perfect for usage in small electrical devices like smartphones and wearables.

  • Cost-effectiveness:

Quartz crystal components are comparatively cheap, making them a viable solution for various electronic applications.

What are the effective components of a Quartz crystal unit?

quartz crystal unit generally comprises a very thin piece of quartz crystal, electrodes, and a container to shield the crystal from harm. Here is a more thorough description of each element:

  • Quartz crystal:

The core of a quartz crystal unit is a tiny piece of quartz crystal that has been cut and sculpted to vibrate at a certain frequency when an electrical current is applied. The crystal’s dimensions, form, and orientation affect the vibration’s frequency.

  • Electrodes:

Two metal electrodes cover the quartz crystal’s surface on each side. With the help of these electrodes, an electrical current is applied to the crystal, and the electrical signal produced by the crystal’s vibration is then measured.

  • Package:

Quartz crystal and electrodes are frequently enclosed in a package to shield the crystal from harm and make it easier to put the component on a printed circuit board or another electrical device. The packaging might be ceramic, plastic, or metal, depending on the use. Some crystal units may contain additional parts in addition to these fundamental ones, such as temperature compensation circuits or load capacitors that can be used to change the frequency of the crystal or load capacitors that help the crystal maintain its frequency stability over a wide temperature range.

What kind of Quartz crystal units are there?

There are several varieties of quartz crystal units, and each has special qualities and uses. Some of the most typical varieties are listed below:

  • AT cut quartz crystal:

The AT-cut quartz crystal is the most often utilized variety of quartz crystals. It is utilized in many applications, including clocks, microprocessors, and communication systems. It is made to vibrate in the basic mode.

  • BT cut quartz crystal:

The BT-cut quartz crystal has a similar structure to the AT-cut crystal but is intended to function at a higher frequency. It is utilized in processes that call for a high-frequency signal, such as wireless transmission and digital signal processing.

  • SC cut quartz crystal:

The SC-cut quartz crystal is used in high-precision applications that demand negligibly low phase noise and great stability across a broad temperature range. Precision oscillators and high-end frequency standards frequently employ it.

  • FC Cut Quartz Crystal:

The FC-cut quartz crystal is used in industries like aerospace and military that need high-frequency stability across a wide temperature range.


Electrical current and timing may be controlled effectively and dependably using quartz crystal unit technology. The system is based on the quartz crystals’ resonance frequency, which transforms electrical energy into mechanical energy. Many electronic products include watches, radios, computers, and cell phones. To satisfy the requirements of a variety of clients, including manufacturers of initial equipment, initial design manufacturers, and providers of electronic manufacturing services, ChipSun Technologies offers R&D solutions, turnkey solutions, e-commerce, and other value-added services.
