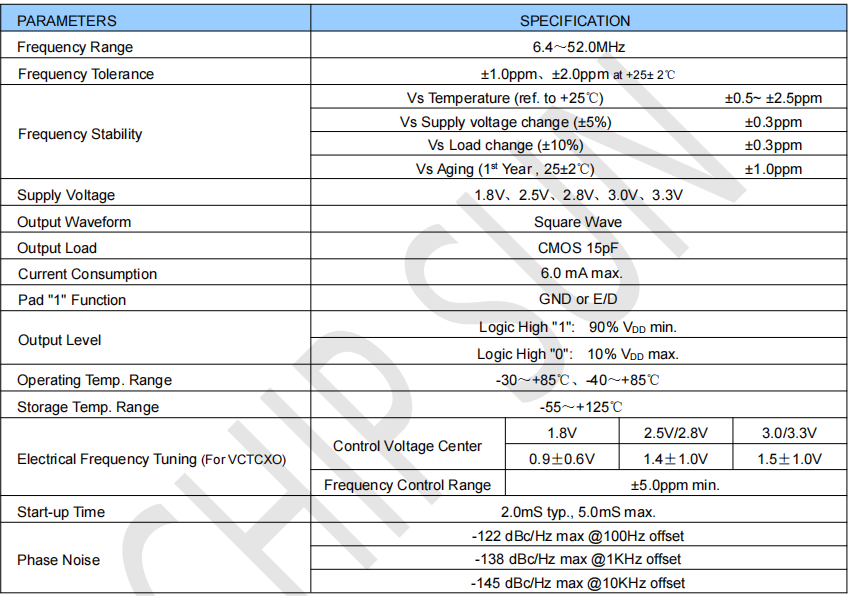

Home > Product > (VC)TCXO-SMD5032(CMOS)(VC)TCXO-SMD5032(CMOS)Frequency: 6.4MHz-52MHz Size: 5.0 × 3.2mm Temperature: -40~+85℃ Stability: ±2.5ppm Sample Download Parameter Table PART NUMBER GUIDE e.g. FTO26.000M3.0SM5T-1.0/2.5C (*SM5T=5.0×3.2 SMD TYPE, CMOS，1# GND) Logo Type Frequency Supply Voltage Package Output Waveform Frequency Tolerance Frequency Stability Operating Temp. F TO 26.000M 3.0 SM5 T or T1 1.0 2.5 C VTO T External dimensions Application form Note:items marked with * are required *Name *Email *Frequency *Stability *Voltage/load Capacitance Remark
