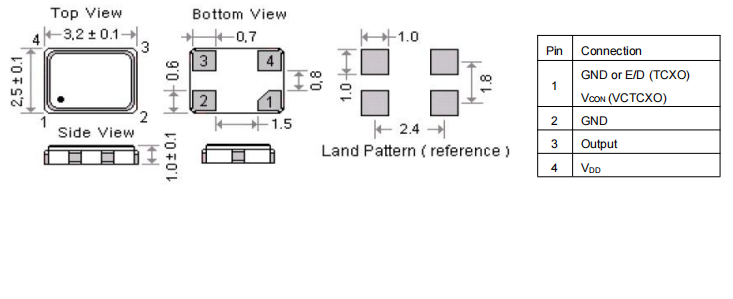

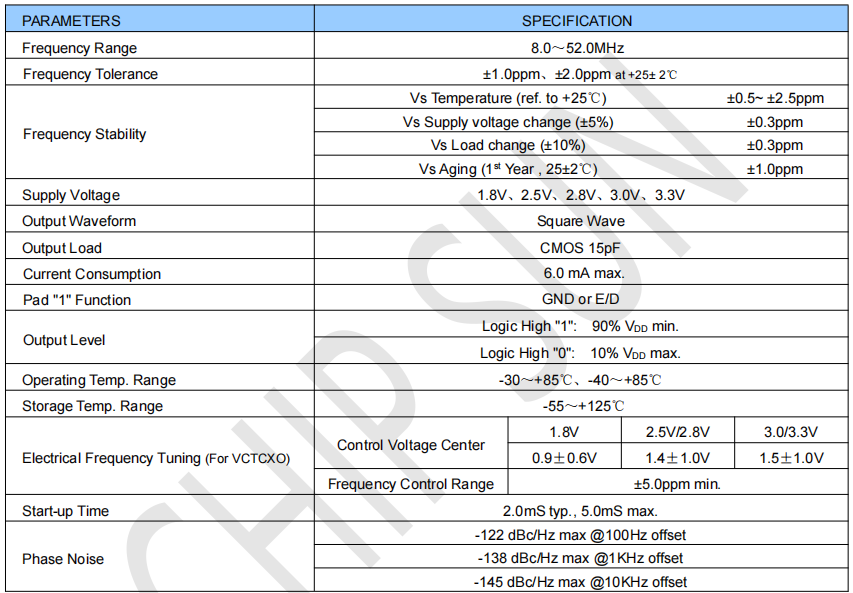

Home > Product > (VC)TCXO-SMD3225(CMOS)(VC)TCXO-SMD3225(CMOS)Frequency: 8MHz-52MHz Size: 3.2 × 2.5mm Temperature: -40~+85℃ Stability: ±0.5ppm ~ 2.5ppm Sample Download Parameter Table PART NUMBER GUIDE e.g. FTO26.000M3.0SM3T-1.0/2.5C (*SM3T=3.2×2.5 SMD TYPE, CMOS，1# GND) Logo Type Frequency Supply Voltage Package Output Waveform Frequency Tolerance Frequency Stability Operating Temp. F TO 26.000M 3.0 SM3 T or T1 1.0 2.5 C VTO T External dimensions Application form Note:items marked with * are required *Name *Email *Frequency *Stability *Voltage/load Capacitance Remark
