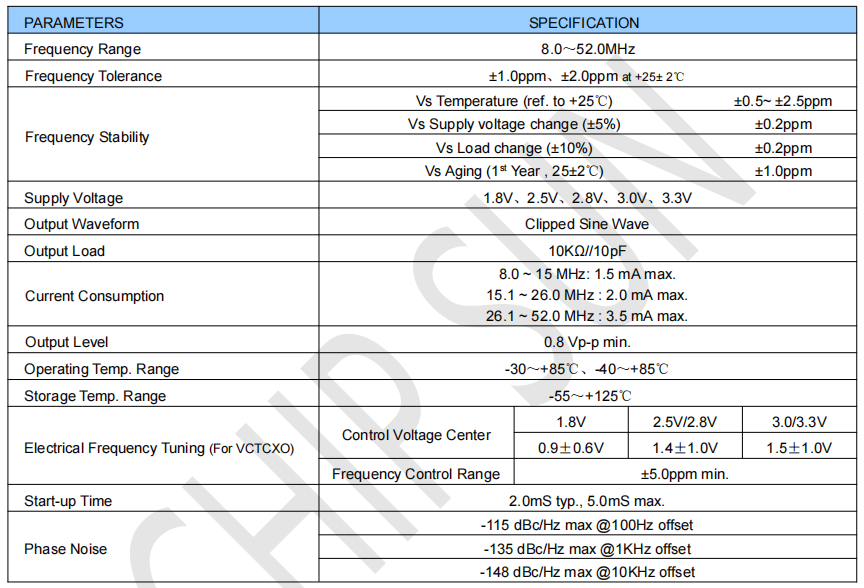

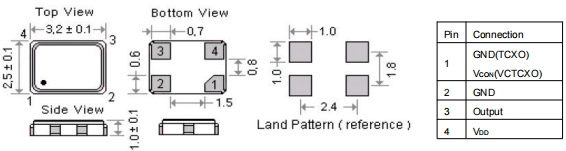

Home > Product > (VC)TCXO-SMD3225(Sin)(VC)TCXO-SMD3225(Sin)Frequency: 8MHz-52MHz Size: 3.2 × 2.5mm Temperature: -40~+85℃ Stability: ±0.5ppm ~ 2.5ppm Sample Download Parameter Table PART NUMBER GUIDE e.g. FTO26.000M3.0SM3S-1.0/2.5C (*SM3S=3.2×2.5 SMD TYPE, Sin Wave) Logo Type Frequency Supply Voltage Package Output Waveform Frequency Tolerance Frequency Stability Operating Temp. F TO 26.000M 3.0 SM3 S 1.0 2.5 C VTO External dimensions Application form Note:items marked with * are required *Name *Email *Frequency *Stability *Voltage/load Capacitance Remark
