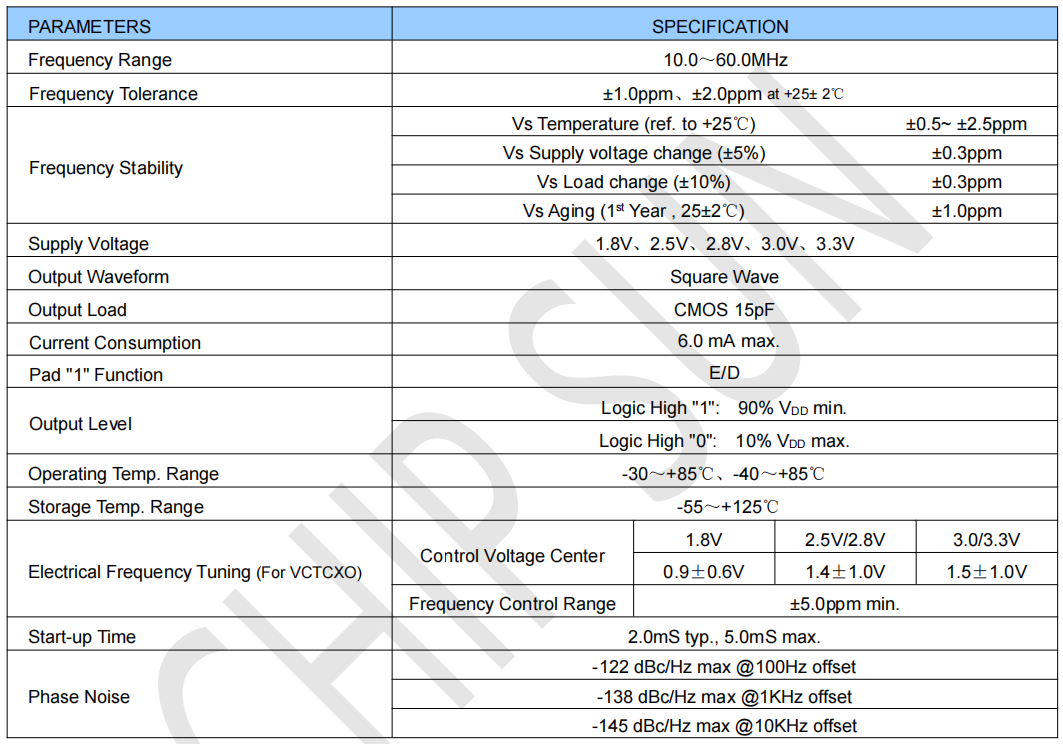

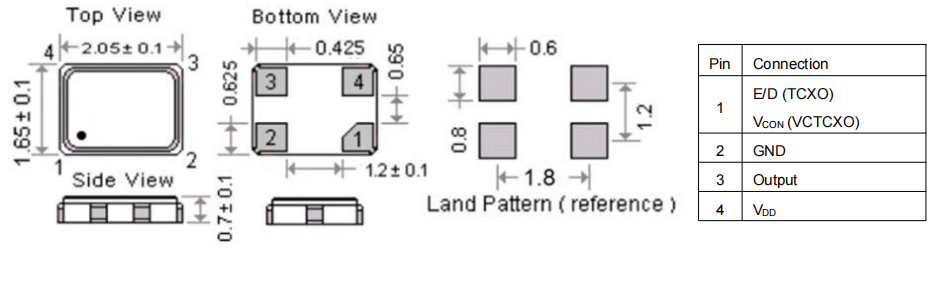

Home > Product > (VC)TCXO-SMD2016(CMOS)(VC)TCXO-SMD2016(CMOS)Frequency: 10MHz-60MHz Size: 2.0 × 1.6mm Temperature: -40~+85℃ Stability: ±0.5ppm ~ 2.5ppm Sample Download Parameter Table PART NUMBER GUIDE e.g. FTO26.000M3.0SM2AT1-1.0/2.5C (*SM2AT1=2.0×1.6 SMD TYPE, CMOS，1# E/D) Logo Type Frequency Supply Voltage Package Output Waveform Frequency Tolerance Frequency Stability Operating Temp. F TO 26.000M 3.0 SM2A T1 1.0 2.5 C VTO T External dimensions Application form Note:items marked with * are required *Name *Email *Frequency *Stability *Voltage/load Capacitance Remark
