VCTCXO-3225

VCTCXO-3225

Frequency:

10MHz-40MHz

Size:

3.2 × 2.5mm

Temperature:

-40~+85℃

Stability:

±2.5ppm

Parameter Table

PARAMETERS SPECIFICATION
Frequency Range 10.0~40.0MHz
Supply Voltage 1.8V、2.5V、2.8V、3.3V
Supply Current 10MHz≤F0≤26MHz: 2.0mA max

26MHz<F0≤40MHz: 2.5mA max

Frequency Tolerance ±0.5ppm、±1.0ppm、±2.0ppm
Frequency Stability Vs Temperature (ref. to +25℃) ±1.5~ ±2.5ppm
Vs Supply voltage change (±5%) ±0.2ppm
Vs Load change (±10%) ±0.2ppm
Vs Aging (1st Year ,25±2℃) ±1.0ppm
Operating Temp. Range -30~+85℃ (-40~+85℃ )
Storage Temp. Range  -55~+125℃
Voltage Control Range ±5.0ppm min
Output Waveform: Clipped Sine Wave
Output Level: 0.8 Vp-p Min (Clipped Sine Wave)
Output Load 10KΩ//10pF
Symmetry 45% ~ 55% typ. at 0.5×Vdc
Start-up Time 2.0mS max
Phase Noise -115 dBc/Hz max @100Hz offset
-135 dBc/Hz max @1KHz offset
-148 dBc/Hz max @10KHz offset

PART NUMBER GUIDE e.g. FVTO26.000M2.8SM3- 1.0/2.5C(*SM3=3.2×2.5 SMD TYPE)

VCTCXO Frequency Supply voltage Package Frequency Tolerance Frequency Stability Operating Temp.
F VTO 26.000MHz 2.8V SM3 +/-1.0ppm +/-2.5ppm C



Definition Description
Operating Temp. A:0~+70℃
B:-20~+70℃
C:-30~+85℃
D:-40~+85℃
E:Customer specified

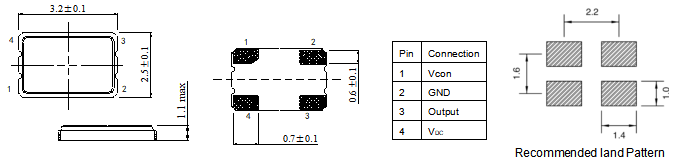

External dimensions

Application form

Note:items marked with * are required
