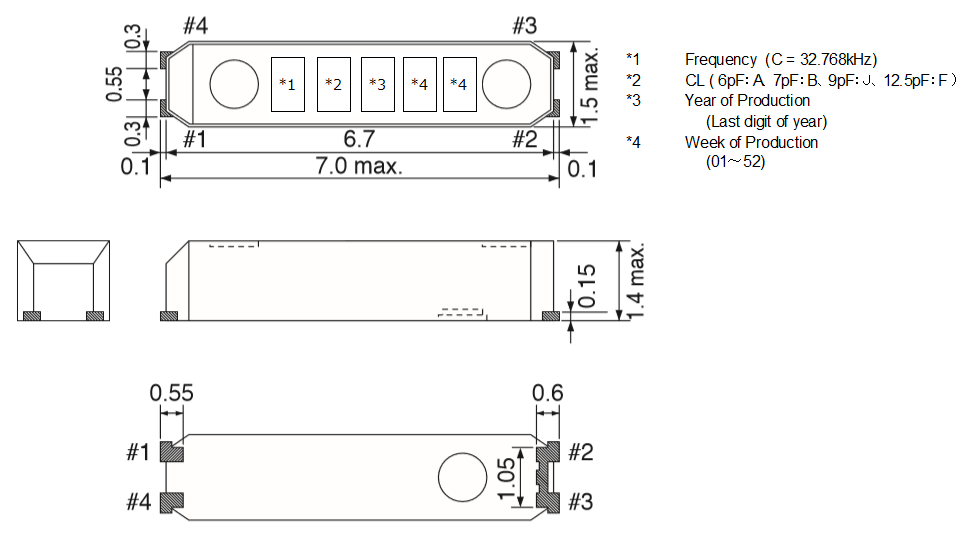

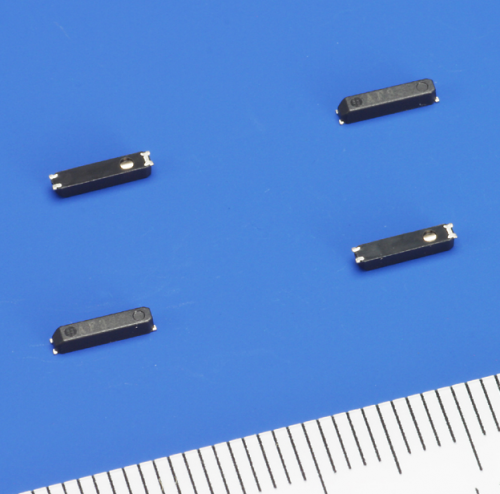

Home > Product > SSP-T7-FSSP-T7-FFrequency: 32.768 kHz Size: 7 x 1.5 x 1.4 mm Temperature: -40℃~+85℃ Stability: ±5ppm, ±10ppm, ±20ppm Sample Download Parameter Table Item Symbol Specifications Nominal Frequency f_nom 32.768kHz Frequency Tolerance f_tol ±5 x 10-6, ±10 x 10-6, ±20 x 10-6 ※Please contact us for inquiries regarding available tolerance. Turnover Temperature Ti +25±5ºC Parabolic Coefficient B (−0.033±10%) x 10-6/ºC2 Load Capacitance CL 7.0pF , 9.0pF, 12.5pF ※Please contact us for inquiries regarding available CL. Motional Resistance(ESR) R1 65kΩ max. Absolute Maximum Drive Level DLmax. 1.0μW Drive Level DL 0.1μW Shunt Capacitance C 0 0.9pF typ. Frequency Ageing f_age ±3 x 10-6 Operating Temperature T_use −40ºC to +85ºC Storage Temperature T_stg −55ºC to +125ºC External dimensions Application form Note:items marked with * are required *Name *Email *Frequency *Stability *Voltage/load Capacitance Remark
