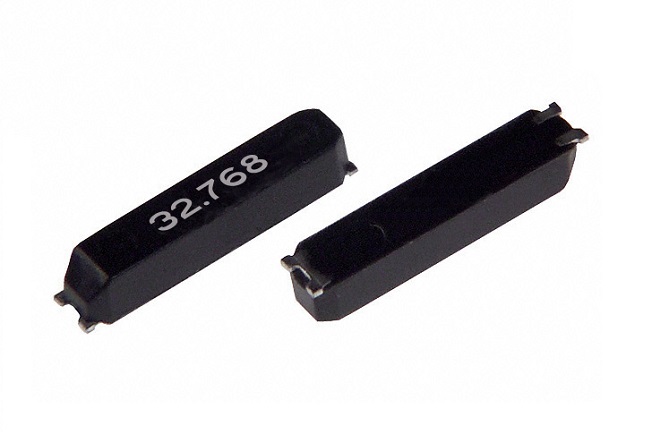

SMD7.0*1.5

SMD7.0*1.5

Frequency:

32.768KHz

Size:

7.0 x 1.5 mm

Temperature:

-40℃~+85℃

Stability:

±10ppm

±20ppm

Parameter Table

PARAMETERS SPECIFICATION
Frequency Range 32.768KHz
Loading Capacitance 12.5pF Std. 7 pF available
Drive Level 1.0μW Max
Frequency Tolerance ±20ppm(at 25℃)
Equivalent Resistance 65KΩ Max
Temperature coefficient -0.04×10-6 /℃2 max
Operating Temp. Range: -40~+85℃
Storage Temp. Range:  -55~+125℃
Aging(25℃,First Year) ±3ppm max

PART NUMBER GUIDE 部件号示例 e.g. FTX32.768K12.5SM7-20D (*SM7=7.0×1.5 SMD)

Logo Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Operating Temp. Range
FT X 32.768KHz 12.5pF SM7 +/-20ppm D



Definition Description
Operating

Temperature Range

A:-10~+60℃
B:-20~+70℃
C:-30~+80℃
D:-40~+85℃
E:Customer specified

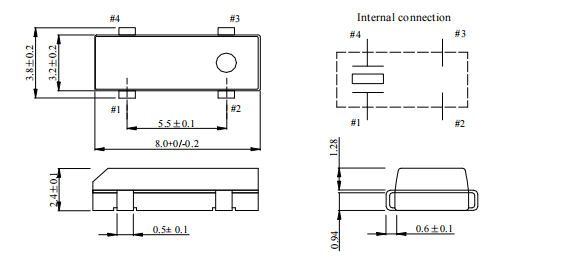

External dimensions
