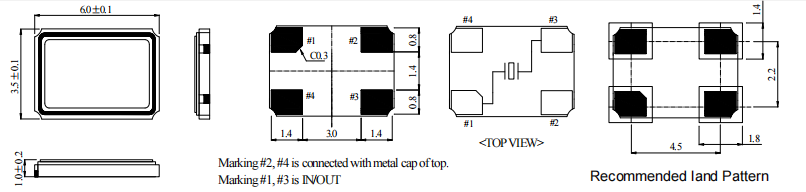

Home > Product > SMD6035SMD6035Frequency: 7.3MHz~50MHz Size: 6.0×3.5 mm Temperature: -10～+60℃ to -40～+85℃ Stability: ±10ppm ±20ppm Sample Download Parameter Table PARAMETERS SPECIFICATION Frequency Range 7.3～50MHz Dimensions 6.0 x 3.5 x 1.0 mm Operation Mode Fundamental Loading Capacitance 12pF Std. 8 to 32pF Series available Drive Level 10μW（500μW Max） Frequency Tolerance ±10ppm～±30ppm（at 25℃） Equivalent Resistance 60Ω Max Frequency Stability ±10ppm～±50ppm Operating Temp. Range: -10～+60℃ to -40～+85℃ Storage Temp. Range: -55～+125℃ Part Number Guide :e.g.FTX12.000M18SM6S-20/20B (*SM6S=6.0×3.5 SMD SEAM TYPE) Logo Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Frequency Stability Operating Temp. Range FT X 12.000MHz 18pF SM6S +/-20ppm +/-20ppm B Operating Temp. Range A：-10~+60℃ B：-20~+70℃ C：-30~+80℃ D：-40~+85℃ E：Customer specified External dimensions Application form Note:items marked with * are required *Name *Email *Frequency *Stability *Voltage/load Capacitance Remark
