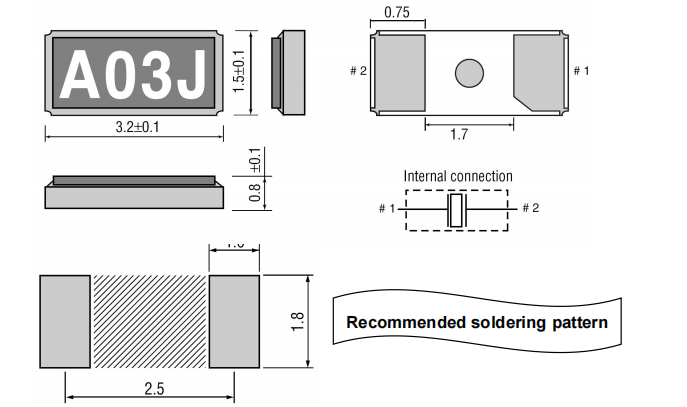

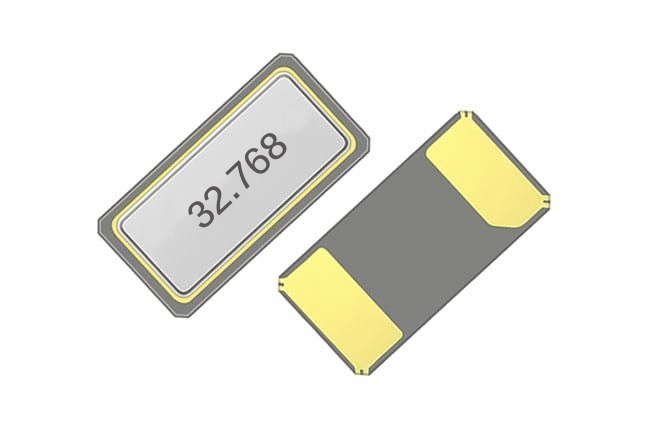

Home > Product > SMD3215SMD3215Frequency: 32.768KHz Size: 3.2 x 1.5 mm Temperature: -20℃~+70℃ Stability: ±20ppm ±25ppm Sample Download Parameter Table PARAMETERS SPECIFICATION Frequency Range 32.768KHz Loading Capacitance 12.5pF Std. 7 pF available Drive Level 1.0μW Max Frequency Tolerance ±20ppm（at 25℃） Equivalent Resistance 70KΩ Max Temperature coefficient -0.04×10-6 /℃2 max Operating Temp. Range: -40～+85℃ Storage Temp. Range: -55～+125℃ Aging（25℃，First Year） ±3ppm max PART NUMBER GUIDE e.g. FTX32.768K12.5SM3-20D (*SM3=3.2×1.5 SMD) Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Operating Temp. Range FT X 32.768KHz 12.5pF SM3 +/-20ppm D External dimensions Application form Note:items marked with * are required *Name *Email *Frequency *Stability *Voltage/load Capacitance Remark
