SMD2016

SMD2016

Frequency:

16MHz-96MHz

Size:

2.0 x 1.6 mm

Temperature:

-20℃~+70℃

-40℃~+85℃

Stability:

±10ppm

±20ppm

Parameter Table

PARAMETERS SPECIFICATION
Frequency Range 16~96MHz
Operation Mode Fundamental
Loading Capacitance 9pF Std.  8 to 32pF / Series available
Drive Level 10μW(100μW Max)
Frequency Tolerance ±10ppm~±30ppm(at 25℃)
Equivalent Resistance 80Ω Max
Frequency Stability ±10ppm~±50ppm
Operating Temp. Range -10~+60℃ to -40~+85℃
Storage Temp. Range  -55~+125℃

Part Number Guide: e.g. FTX24.000M10SM2A-10/10B (*SM2A=2.0×1.6 SMD SEAM TYPE)

Logo Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Frequency Stability Operating Temp. Range
FT X 24.000MHz 10pF SM2A +/-10ppm +/-10ppm B
Definition Description
Operating

Temperature Range

A:-10~+60℃
B:-20~+70℃
C:-30~+80℃
D:-40~+85℃
E:Customer specified

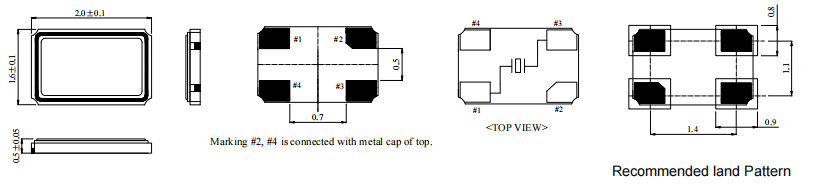

External dimensions
