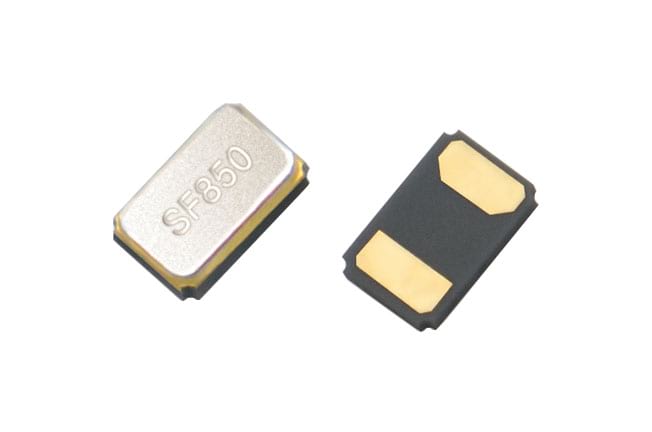

SMD2012

SMD2012

Frequency:

32.768KHz

Size:

2.0 x 1.2 mm

Temperature:

-40℃~+85℃

Stability:

±20ppm

Parameter Table

PARAMETERS SPECIFICATION
Frequency Range 32.768KHz
Loading Capacitance 12.5pF Std. 9 pF available
Drive Level 0.2μW (1.0μW Max)
Frequency Tolerance ±20ppm(at 25℃)
Equivalent Resistance 80KΩ Max
Turn-over temperature +25℃±5℃
Temperature coefficient -0.04×10-6 /℃2 max
Operating Temp. Range: -40~+85℃
Storage Temp. Range:  -40~+85℃
Aging(25℃,First Year) ±3ppm max

Part Number Guide X201232768KGB2SI

★  PART NUMBER GUIDE   e.g. FTX32.768K12.5SM1-20D (*SM1=1.6×1.0 SMD)
Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Operating Temp. Range
FT X 32.768KHz 12.5pf SM1 +/-20ppm D
Definition Description
Operating Temp. Range A:-10~+60℃
B:-20~+70℃
C:-30~+80℃
D:-40~+85℃
E:Customer specified

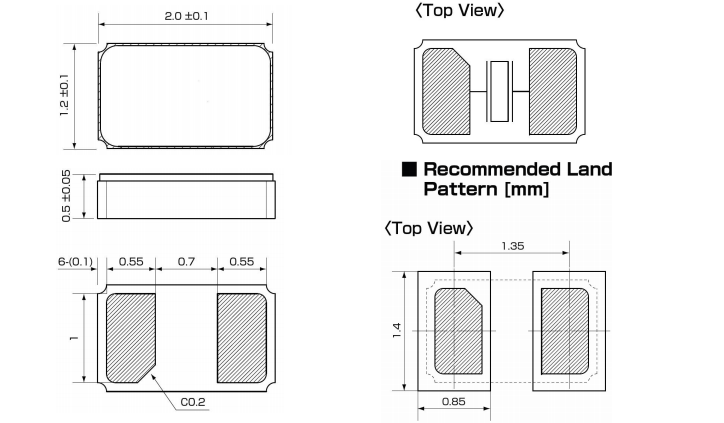

External dimensions
