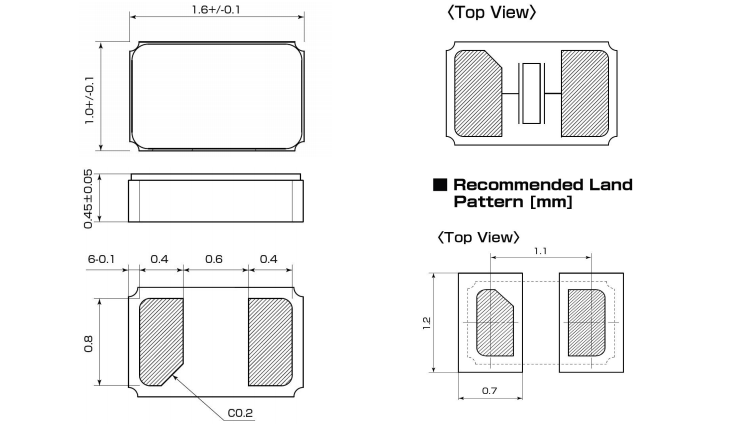

Home > Product > SMD1610SMD1610Frequency: 32.768KHz Size: 1.6 x 1.0 mm Temperature: -40℃~+85℃ Stability: ±20ppm Sample Download Parameter Table PARAMETERS SPECIFICATION Frequency Range 32.768KHz Loading Capacitance 12.5pF Std. 9 pF available Drive Level 0.1μW (1.0μW Max) Frequency Tolerance ±20ppm（at 25℃） Equivalent Resistance 90KΩ Max Turn-over temperature +25℃±5℃ Temperature coefficient -0.04×10-6 /℃2 max Operating Temp. Range: -40～+85℃ Storage Temp. Range: -40～+85℃ Aging（25℃，First Year） ±3ppm max PART NUMBER GUIDE e.g. FTX32.768K12.5SM1-20D (*SM1=1.6×1.0 SMD) Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Operating Temp. Range FT X 32.768KHz 12.5pF SM1 20ppm D Definition Description Operating Temp. Range A：-10~+60℃ B：-20~+70℃ C：-30~+80℃ D：-40~+85℃ E：Customer specified External dimensions Application form Note:items marked with * are required *Name *Email *Frequency *Stability *Voltage/load Capacitance Remark
