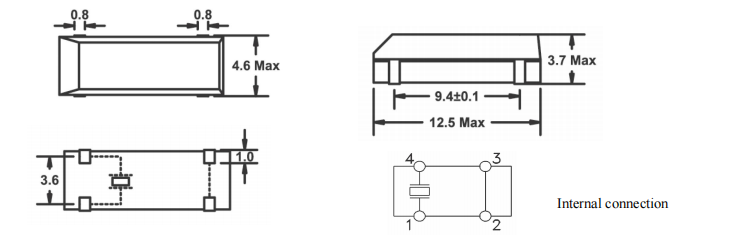

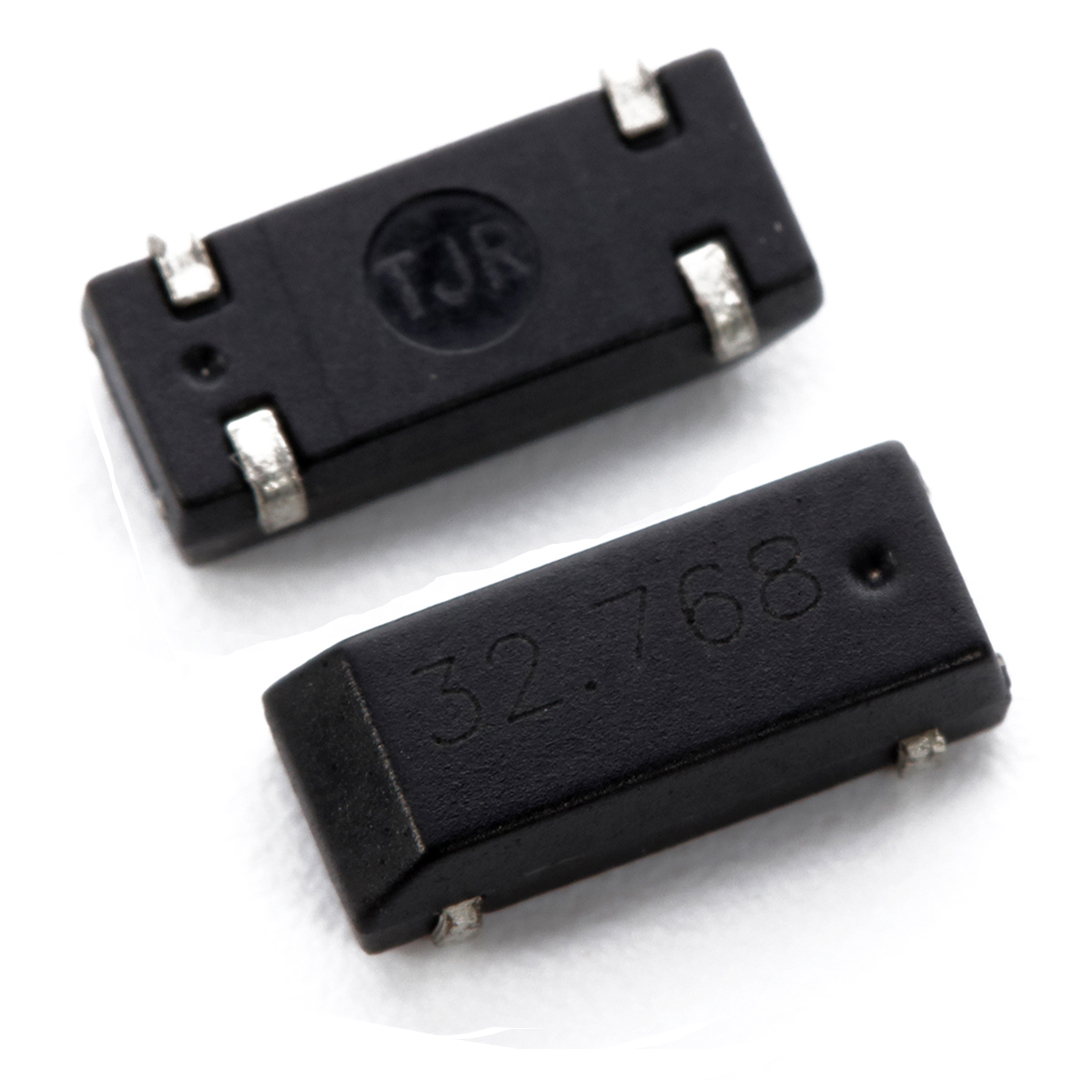

Home > Product > SMD12.5*4.6SMD12.5*4.6Frequency: 32.768KHz Size: 12.5 x 4.6 mm Temperature: -40℃~+85℃ -20℃~+70℃ Stability: ±20ppm Sample Download Parameter Table Item/type SMD12.5 × 4.6 Frequency Range 32.768KHz standard，20.000~165.000KHz Dimensions 12.5 × 4.6 × 3.7mm Loading Capacitance 12.5pF Std. 6 to 20pF Series available Drive Level 1.0μW Max Frequency Tolerance ±10ppm ~ ±30ppm（at 25℃） Equivalent Resistance 50KΩ Max Temperature coefficient -0.04×10-6 /℃2 max Operating Temp. Range: -20 ~ +70℃ / -40 ~ +85℃ Storage Temp. Range: -55 ~ +125℃ Aging（25℃，First Year） ±3ppm max PART NUMBER GUIDE e.g. FTX32.768K12.5SM12-20D (*SM12=12.5×4.6 SMD) Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Operating Temp. Range FT X 32.768KHz 12.5pf SM12 +/-20ppm D Definition Description Operating Temp. Range A：-10~+60℃ B：-20~+70℃ C：-30~+80℃ D：-40~+85℃ E：Customer specified External dimensions Application form Note:items marked with * are required *Name *Email *Frequency *Stability *Voltage/load Capacitance Remark
