SMD10.4*4.1 FT406

SMD10.4*4.1 FT406

Frequency:

32.768KHz

Size:

10.4 x 4.1mm

Temperature:

-40℃~+85℃

-20℃~+70℃

Stability:

±20ppm

Parameter Table

PARAMETERS  SPECIFICATION
Frequency Range 32.768KHz standard,20.000~165.000KHz
Loading Capacitance 12.5pF Std. 6 to 20pF Series available
Drive Level 1.0μW Max
Frequency Tolerance ±10ppm ~ ±30ppm(at 25℃)
Equivalent Resistance 50KΩ Max
Temperature coefficient -0.04×10-6 /℃2 max
Operating Temp. Range: -20 ~ +70℃ / -40 ~ +85℃
Storage Temp. Range:  -55 ~ +125℃
Aging(25℃,First Year) ±3ppm max

PART NUMBER GUIDE e.g. FTX32.768K12.5SM10B-20D (*SM10B=10.4×4.1 406Type)

Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Operating Temp. Range
FT X 32.768KHz 12.5pF SM10B +/-20ppm D



Definition Description
Operating

Temperature Range

A:-10~+60℃
B:-20~+70℃
C:-30~+80℃
D:-40~+85℃
E:Customer specified

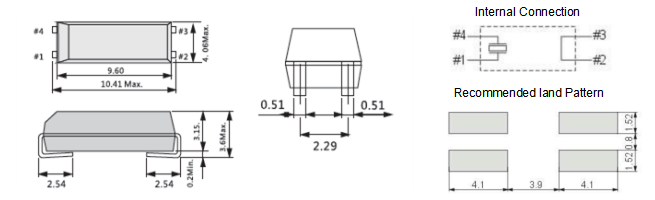

External dimensions
