SC-32S

SC-32S

Frequency:

32.768kHz

Size:

3.2 × 1.5 × 0.8 mm

Temperature:

-40 to +85°C

Stability:

±5ppm, ±10ppm, ±20ppm

Parameter Table

Item Symbol Specifications
Nominal Frequency f_nom 32.768kHz
Frequency Tolerance f_tol ±5 x 10-6, ±10 x 10-6, ±20 x 10-6
※Please contact us for inquiries regarding available tolerance.
Turnover Temperature Ti +25±5ºC
Parabolic Coefficient B (−0.030±10%) x 10-6/ºC2
Load Capacitance CL 6.0pF, 7.0pF, 9.0pF, 12.5pF
※Please contact us for inquiries regarding available CL.
Motional Resistance(ESR) R1 70kΩ Max.
Absolute Maximum Drive Level DLmax. 1.0μW Max.
Drive Level DL 0.1μW typ.
Shunt Capacitance C 0 1.0pF typ.
Frequency Ageing f_age ±3 x 10-6/Year
Operating Temperature T_use −40ºC to +85ºC
Storage Temperature T_stg −55ºC to +125ºC

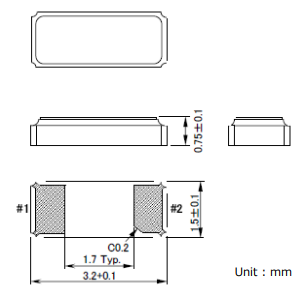

External dimensions
