OSC-SMD7050

OSC-SMD7050

Frequency:

32.768KHz
1MHz-125MHz

Size:

7.0 x 5.0 mm

Temperature:

-20℃~+70℃
-40℃~+85℃

Stability:

±20ppm
±25ppm

Parameter Table

PARAMETERS   SPECIFICATION
Frequency Range 1~125MHz
Supply voltage 1.8V,2.5V,2.8V,3.3V,5.0V
Dimensions 7.0 x5.0x 1.8mm
Input Current See Below
Frequency Stability Overall ±20ppm~±50ppm
Operating Temp. Range -10~+60℃ to -40~+85℃
Storage Temp. Range  -55~+125℃
Output Load HCMOS/TTL(15pF~30pF/10TTL)
Symmetry 45% ~ 55% typ. (40% ~ 60% max.) at 0.5×Vdc
Start-up time 10mS max
Enable/ Disable Function O/E or E/D

Part Number Guide:e.g. FXO12.000M3.3SM7-50D(*SM7=7.0×5.0SMD TYPE)

Logo Quartz Crystal Oscillator Frequency Supply voltage Package Frequency Stability Operating Temp. Range
F XO 12.000M 3.3 SM7 50 D
Operating Temp. Range A:-10~+60℃
B:-20~+70℃
C:-30~+80℃
D:-40~+85℃
E:Customer specified

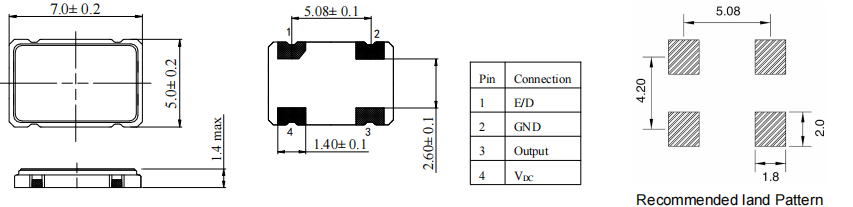

External dimensions
