OSC-SMD2016

OSC-SMD2016

Frequency:

32.768KHz
1.5MHz-50MHz

Size:

2.0 x 1.6 mm

Temperature:

-20℃~+70℃
-40℃~+85℃

Stability:

±20ppm
±25ppm

Parameter Table

PARAMETERS  SPECIFICATION
Frequency Range 1.5~50MHz
Dimensions  2.0 x 1.6 x 0.75 mm
Supply voltage 1.8V,2.5V,2.8V,3.3V
Input Current See Below
Frequency Stability Overall ±20ppm~±50ppm
Operating Temp. Range -10~+60℃ to -40~+85℃
Storage Temp. Range  -55~+125℃
Output Load HCMOS/TTL(15pF~30pF/10TTL)
Symmetry 45% ~ 55% typ. (40% ~ 60% max.) at 0.5×Vdc
Start-up time 10mS max
Enable/ Disable Function O/E or E/D

Part Number Guide :e.g. FXO12.000M3.3SM2A-50D (*SM2A=2.0×1.6 SMD TYPE)

Logo Quartz Crystal Oscillator Frequency Supply voltage Package Frequency Stability Operating Temp. Range
F XO 12.000MHz 3.3V SM2A +/-50ppm D
Operating Temp. Range A:-10~+60℃
B:-20~+70℃
C:-30~+80℃
D:-40~+85℃
E:Customer specified

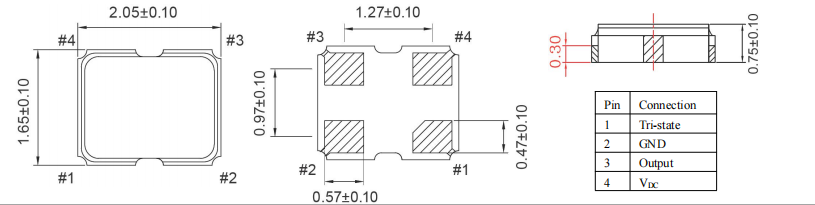

External dimensions

Application form

Note:items marked with * are required
