OSC-DIP14

OSC-DIP14

Frequency:

0.4MHz-200MHz

Size:

20.4 x 12.8 mm

Temperature:

-20℃~+70℃
-40℃~+85℃

Stability:

±20ppm
±25ppm

Parameter Table

PARAMETERS SPECIFICATION
=Frequency Range 0.4~200MHz
Supply voltage 1.8V、3.3V、5.0V
Input Current TTL CMOS
0.5MHz ~ 24.999MHz 25mA max 20mA max
25MHz ~ 99.999MHz 40mA max 40mA max
100MHz ~ 200MHz 60mA max 60mA max
Frequency Stability Overall ±20ppm~±100ppm
Operating Temp. Range -10~+60℃ to -40~+85℃
Storage Temp. Range  -55~+125℃
Output Load CMOS or TTL(15pF/1-10TTL)
Symmetry 45% ~ 55% typ. (40% ~ 60% max.) at 0.5×Vdc
Start-up time 10mS max
Rise & Fall Time 10nS max
Aging ±5ppm max/Year

Part Number Guide: e.g. FXO12.000M3.3F-50D (*F=Full Size,DIP14)

Logo Quartz Crystal Oscillator Frequency Supply voltage Package Frequency Stability Operating Temp. Range
F XO 12.000MHz 3.3V F +/-50ppm D
Operating Temp. Range A:-10~+60℃
B:-20~+70℃
C:-30~+80℃
D:-40~+85℃
E:Customer specified

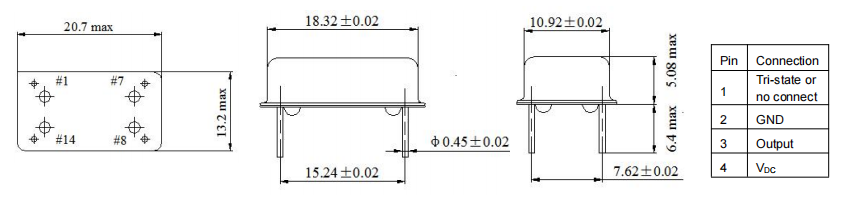

External dimensions
