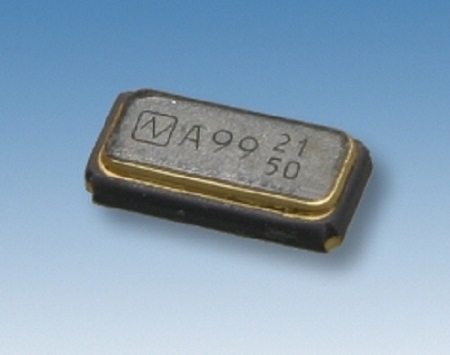

Home > Product > NX3215SANX3215SAFrequency: 32.768 kHz Size: 3.2 × 1.5 × 0.8 mm Temperature: -40 to +85°C Stability: ±20ppm Sample Download Parameter Table Standard Standard Nominal Frequency (kHz) 32.768 Package Size (L×W×H : mm) 3.2×1.5×0.8 Operating Temperature Range (°C) -40 to +85 Storage Temperature Range (°C) -40 to +85 Level of Drive (µW) 0.1 (Max. 0.5) Frequency Tolerance (25±3°C) ±20×10-6 Turning Point (°C) +25 ± 5 Temperature Coefficient (/°C2) Max. −0.04 × 10−6 Load Capacitance (pF) 6 9 12.5 Equivalent Series Resistance (kΩ) Max. 70 Shunt Capacitance (pF) Typ. 1.0 / Max. 1.5 Insulation Resistance (MΩ) Min. 500 Specification Number STD-MUA-14 STD-MUA-9 STD-MUA-8 External dimensions Application form Note:items marked with * are required *Name *Email *Frequency *Stability *Voltage/load Capacitance Remark
