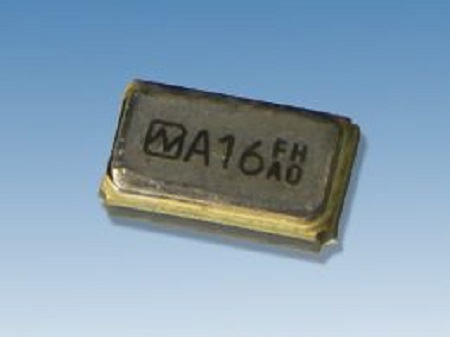

NX2012SA

NX2012SA

Frequency:

32.768kHz

Size:

2.0 x 1.2 x 0.6mm

Temperature:

-40 to +85°C

Stability:

±20ppm

Parameter Table

Standard Standard
Nominal Frequency (kHz) 32.768
Package Size (L×W×H : mm) 2.0×1.2×0.55
Operating Temperature Range  (°C) -40 to +85
Storage Temperature Range   (°C) -40 to +85
Level of Drive (µW) 0.1 (Max. 0.5)
Frequency Tolerance (25±3°C) ±20×10-6
Turning Point (°C) +25 ± 5
Temperature Coefficient (/°C2) Max. −0.04 × 10−6
Load Capacitance (pF) 6 9 12.5
Equivalent Series Resistance (kΩ) Max. 80
Shunt Capacitance (pF) Typ. 1.3 / Max. 1.6
Insulation Resistance (MΩ) Min. 500
Specification Number STD-MUB-3 STD-MUB-2 STD-MUB-1

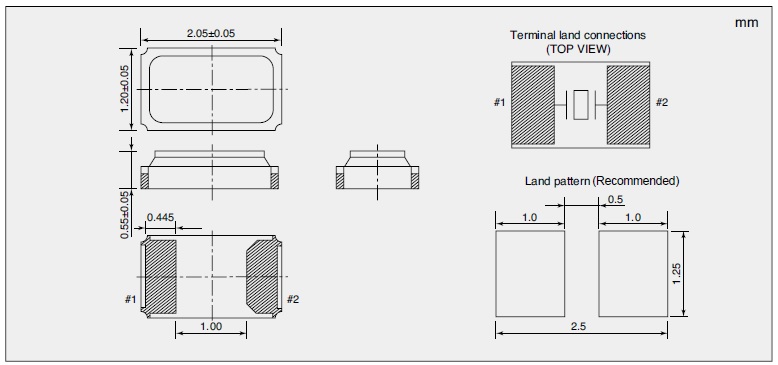

External dimensions
