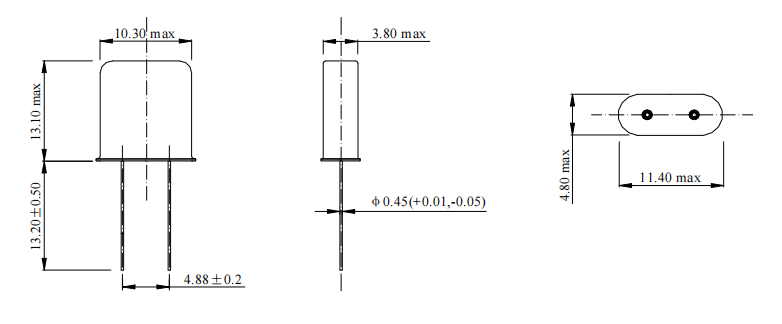

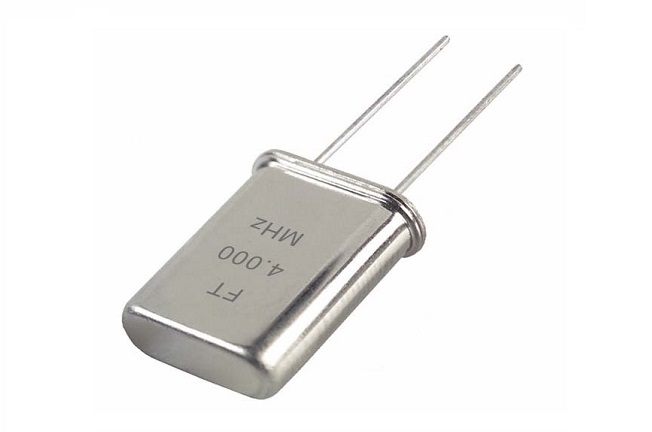

Home > Product > HC-49UHC-49UFrequency: 1.8MHz-100MHz Size: 11.5 x 4.5 mm Temperature: -20℃~+70℃ -40℃~+85℃ Stability: ±10ppm ±20ppm ±30ppm Sample Download Parameter Table PARAMETERS SPECIFICATION Frequency Range 1.8～100MHz Operation Mode （1.8 ~ 36MHz） Fundamental （27 ~ 100MHz）3rd Overtone Loading Capacitance 20pF Std. 8 to 33pF, Series available Drive Level 100μW（500μW max） Frequency Tolerance ±10ppm ~ ±30ppm（at 25℃） Equivalent Resistance See Below Frequency Stability ±10ppm ~ ±50ppm Operating Temp. Range: 0 ~ +50℃ to -40 ~ +85℃ Storage Temp. Range: -40 ~ +85℃ PART NUMBER GUIDE e.g.FTX16.000M20U-30/30B (*U=HC49U TYPE) Logo Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Frequency Stability Operating Temp. Range FT X 16.000MHz 20pF U +/-30 +/-30 B Definition Description Operating Temperature Range A：-10~+60℃ B：-20~+70℃ C：-30~+80℃ D：-40~+85℃ E：Customer specified External dimensions Application form Note:items marked with * are required *Name *Email *Frequency *Stability *Voltage/load Capacitance Remark
