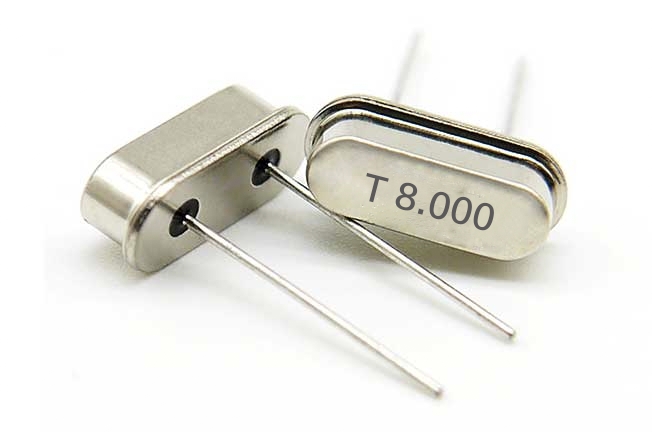

Home > Product > HC-49SHC-49SFrequency: 3.5MHz-100MHz Size: 11.5 x 4.5 mm Temperature: -20℃~+70℃ -40℃~+85℃ Stability: ±10ppm ±20ppm ±30ppm Sample download Parameter Table PARAMETERS SPECIFICATION Frequency Range 3.5～100MHz Operation Mode （3.5 ~ 40MHz） Fundamental （27 ~ 100MHz）3rd Overtone Loading Capacitance 20pF Std. 8 to 33pF, Series available Drive Level 100μW（500μW max） Frequency Tolerance ±10ppm ~ ±30ppm（at 25℃） Equivalent Resistance See Below Frequency Stability ±2.5ppm ~ ±50ppm Operating Temp. Range: 0 ~ +50℃ to -40 ~ +85℃ Storage Temp. Range: -55 ~ +125℃ PART NUMBER GUIDE e.g. FTX16.000M20S-30/30B (*S=HC-49/S TYPE) Logo Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Frequency Stability Operating Temp. Range FT X 16.000MHz 20pF S +/-30ppm +/-30ppm B External dimensions Application form Note:items marked with * are required *Name *Email *Frequency *Stability *Voltage/load Capacitance Remark
