HC-49S-3Pin

HC-49S-3Pin

Frequency:

3.5MHz-100MHz

Size:

11.4 × 4.8mm

Temperature:

-20~+70℃
-40~+85℃

Stability:

±10ppm
±20ppm
±30ppm

Sample

Download

Parameter Table

PARAMETERS SPECIFICATION
Frequency Range 3.5 ~ 100MHz
Operation Mode （3.5 ~ 40MHz） Fundamental  （27 ~ 100MHz）3rd /5rdOvertone
Loading Capacitance 20pF Std. 8 to 33pF , Series available
Drive Level 10μW（300μW Max）
Frequency Tolerance ±10ppm ~ ±30ppm（at 25℃）
Equivalent Resistance See Below
Frequency Stability ±2.5ppm ~ ±50ppm
Operating Temp. Range: 0 ~ +50℃ to -40 ~ +85℃
Storage Temp. Range:  -55 ~ +125℃

Part Number Guide X201232768KGB2SI

Logo Quartz Crystal Resonator Frequency Load Capacitance Package Frequency Tolerance Frequency Stability Operating Temp. Range
FT X 16.000MHz 20pF S3P +/-30ppm +/-30ppm B



Definition Description
Operating

Temperature Range

 A：-10~+60℃
B：-20~+70℃
C：-30~+80℃
D：-40~+85℃
E：Customer specified

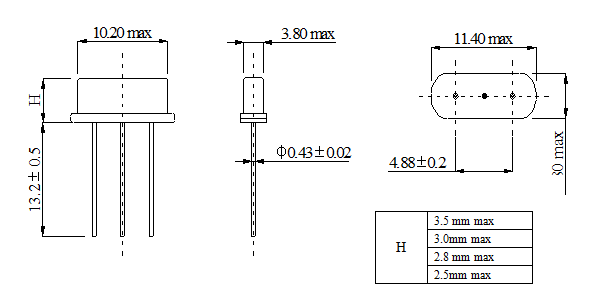

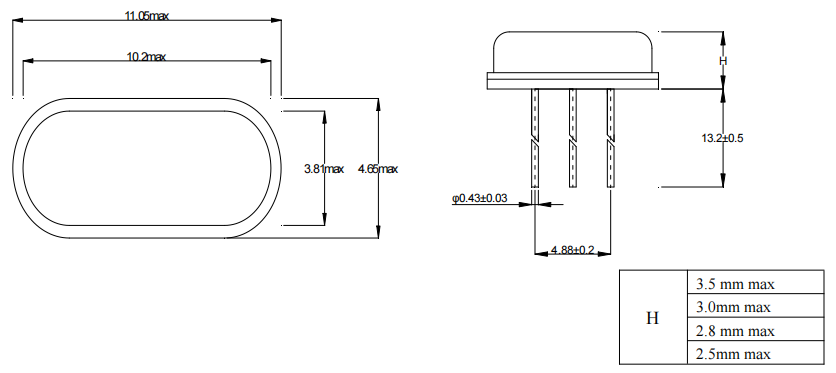

External dimensions

Application form

Note:items marked with * are required
