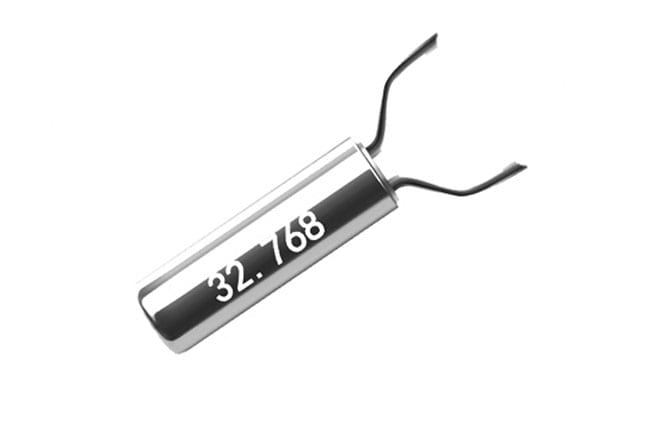

FM206A

FM206A

Frequency:

32.768KHz

Size:

2.5 x 6.0 mm

Temperature:

-40℃~+85℃

Stability:

±20ppm

Parameter Table

Item / Type FM206A
Standard Frequency 32.768KHz
Dimensions 2.0x 0.6 mm
Load Capacitance (CL) 12.5pF, or specify
Frequency Tolerance(at 25 ℃)  ± 20 ppm , or specify
Parabolic Coefficient (B) ( – 0.03 ± 0.01 ) * 10-6 / ℃2
Turnover Temperature (Ti) 25 ℃ ± 5℃
Operating Temperature  – 40 ~ + 85 ℃
Shunt Capacitance (C0) 1.3pF typical
Motional Capacitance (C1) 7.0fF typical
Level of Drive 0.1 μW
Frequency Aging (at 25 ℃) ± 3 ppm / year Max.
Storage Temperature -55 ~ +125℃
Equivalent Series Resistance(ESR) 90KΩ Max

Part Number Guide FTX32.768K12.5FM206-20D

Quartz Crystal Resonator Dimensions
(mm)
Frequency
(Hz)
Load Capacitance
(pF)
Stability
(ppm)
Pin Material Operating Temp
X 2.0 x 0.6 32.768K 12.5 20 2 S D

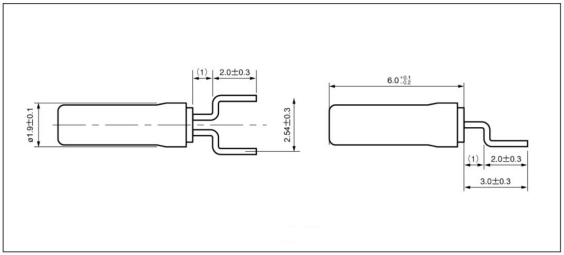

External dimensions
