FC-135 9.0PF

FC-135 9.0PF


32.768 kHz


3.2 × 1.5 × 0.8 mm


-40 to +85°C



Parameter Table

Model name FC-135
Part No. Q13FC13500003
Frequency 32.768000kHz
Size (LxWxH) 3.2 x 1.5 x 0.9 mm
Customer load capacitance 9.0pF
Frequency tolerance +/-20.0ppm
Operating Temperature -40 to +85°C
Motional resistance (Max) 70kΩ
Extra Options No
Level of Drive(Max) 0.5µW
Turnover temperature +25ºC +/-5ºC
Parabolic coefficient (Max) -0.04 x 10^-6/°C²
Frequency aging +/- 3 ppm
Terminal plating(Sales) Au

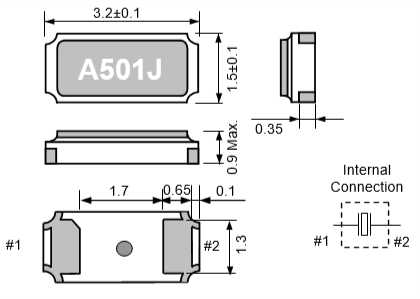

External dimensions
