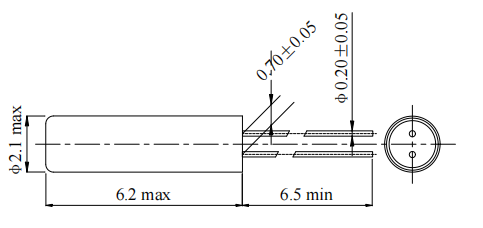

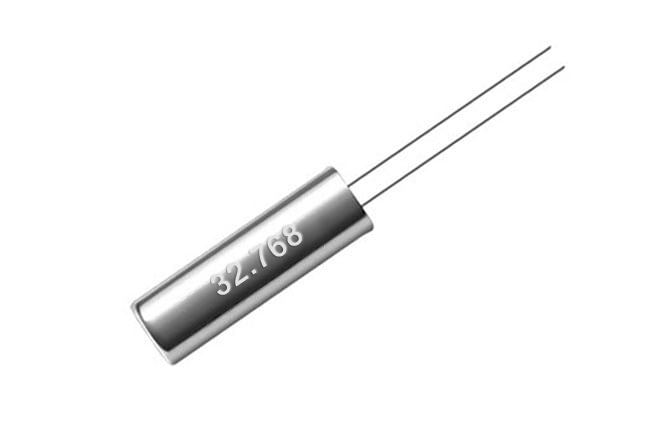

Home > Product > DT26DT26Frequency: 32.768KHz Size: 2.0 x 6.0 mm Temperature: -20℃~+70℃ Stability: ±20ppm Sample Download Parameter Table PARAMETERS SPECIFICATION Frequency Range 32.768KHz (30.00~ 200.00 KHz available) Loading Capacitance 12.5pF Std. 6 pF~20pF available Drive Level 1.0μW Max Frequency Tolerance ±5ppm / ±10ppm / ±20ppm（at 25℃） Equivalent Resistance 40KΩ Max Temperature coefficient -0.04×10-6 /℃2 max, -0.034×10-6 /℃2 typical Operating Temp. Range: -20～+70℃/-40～+85℃ Storage Temp. Range: -40～+85℃ Aging（25℃，First Year） ±5ppm max Part Number Guide X201232768KGB2SI ★ PART NUMBER GUIDE e.g. JXX32.768K12.5D6-20B(*D6=2.0×6.0mm) Quartz Crysta lResonator Frequency Load Capacitance(pF) Package Frequency Tolerance(ppm) Equivalent Resistance(Ω) FT X 32.768KHz 12.5 D6 20 40 External dimensions Application form Note:items marked with * are required *Name *Email *Frequency *Stability *Voltage/load Capacitance Remark
