DST210AC

DST210AC

Frequency:

32.768kHz

Size:

2.0 x 1.2 x 0.55mm

Temperature:

-40 to +85°C

Stability:

±20ppm

Parameter Table

Type DST210AC
Frequency Range 32.768kHz
Load Capacitance 6pF, 7pF, 9pF, 12.5pF
Drive Level 0.1μW (0.5μW max.)
Frequency Tolerance ±20×10-6 (at 25℃)
Series Resistance 80kΩ max.
Turnover Temperature +25℃±5℃
Parabolic Coefficient -0.04×10-6 / ℃2 max.
Operating Temperature Range -40 to +85℃
Storage Temperature Range -40 to +85℃
Shunt Capacitance 1.3pF typ.
Packing Unit (1) 3,000pcs/reel (Φ180)

Part Number Guide X201232768KGB2SI

Quartz Crystal Resonator Dimensions
(mm)
Frequency
(Hz)
Load Capacitance
(pF)
Stability
(ppm)
Pin Material Operating Temp
X 2.0 x 1.2 32.768K G B 2 S I

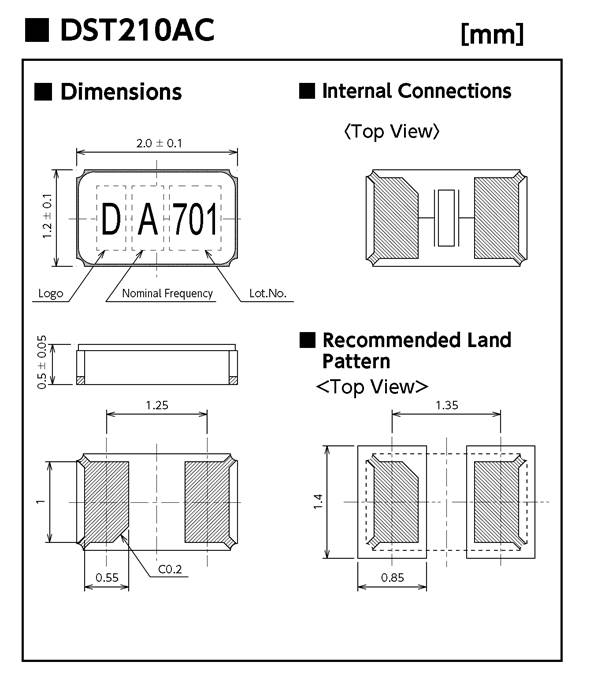

External dimensions
