DSB1612SDN

DSB1612SDN

Frequency:

16MHz – 60MHz

Size:

1.6×1.2×0.5mm

Temperature:

-30℃~+85℃

-40℃~+85℃

Stability:

±0.5ppm,±2.5ppm,

Parameter Table

Type DSB1612SDN (TCXO)
Frequency Range 16 to 60MHz
Standard Frequency 16.3676MHz / 16.367667MHz / 16.368MHz / 16.369MHz / 16.8MHz / 26MHz / 33.6MHz
Supply Voltage Range +1.68 to +3.5V
Supply Voltage (VCC) +1.8V / +2.6V / +2.8V / +3.0V / +3.3V
Current Consumption +1.5mA max. (f≦26MHz) / +2.0mA max. (26<f≦52MHz) / +2.5mA max. (f≦60MHz)
Stand-by Current
(#1 pin “L” Level)
Output Level 0.8Vp-p min. (f≦52MHz) (Clipped Sinewave/DC-coupled)
Output Load 10kΩ//10pF
Frequency Stability Tolerance ±1.5×10-6 max. (After 2 reflows)
vs. Temperature ±0.5×10-6,±2.5×10-6 max. / -30 to +85℃
±0.5×10-6,±2.5×10-6 max. / -40 to +85℃ (Option)
vs. Supply Voltage ±0.2×10-6 max. (VCC ±5%)
vs. Load Variation ±0.2×10-6 max. (10kΩ//10pF±10%)
vs. Aging ±1.0×10-6 max. / year
Frequency Control Control Sensitivity
Response Slope
Start up Time 2.0ms max.
Output Enable Time
Phase Noise [f≦26MHz] [26MHz<f≦40MHz] [40MHz<f≦52MHz]
Offset 100Hz -115dBc/Hz -110dBc/Hz -105dBc/Hz
Offset 1kHz -130dBc/Hz -130dBc/Hz -125dBc/Hz
Offset 10kHz -150dBc/Hz -150dBc/Hz -145dBc/Hz
Offset 100kHz -155dBc/Hz -155dBc/Hz -150dBc/Hz
Packing Unit (1) 3000pcs./reel (Φ180)

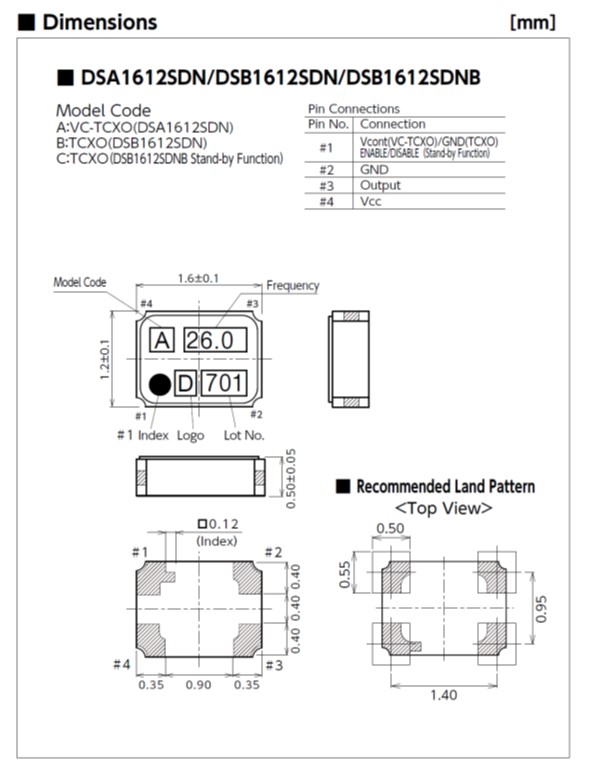

External dimensions
